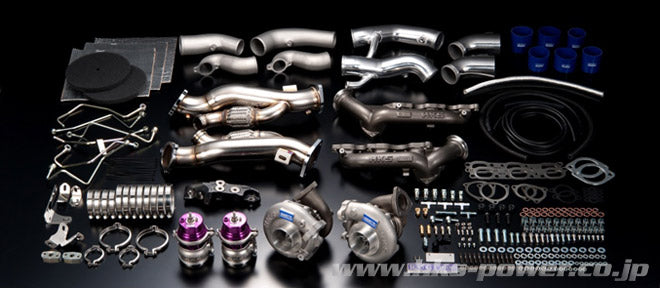

SET UP KIT GT900 R35

14020-AN007

【Features】

• This product is a set up kit for the symmetry turbine set of GT900.
• Use in combining this product with the symmetry turbine set works as a full turbine kit.



• To provide effective intake and exhaust performance, the suction pipe and chamber pipe were originally designed for this product.
• The exhaust manifold is made with heat-resisting steel, which quality was proved by GT800. High durability against heat and vibration is guaranteed.
• GTII Wastegate was selected because of its compact size, light weight, and reliable boost control.







【Performance】

	Output	Torque
GT900 Racing SPEC	910ps/7000rpm	102.6kg-m/4700rpm

※Some one-off parts are included.



【Main Kit Parts】

Main Kit Parts
Exhaust Manifold	Heat-resistant Cast, 52mm Pipe
Wastegate	HKS GTII φ50
Front Pipe	SUS304 φ70→φ75
Suction Pipe	AL buffed pipe φ70
Other Short Parts

※It is recommended to use HKS Racing Suction Reloaded.



Test Vehicle Spec.（GT900）
HKS GT900 (GTII7467)	HKS F-CON V Pro
HKS GT900 Set UP Kit	HKS High-flow Surge Tank
HKS STEP2 Piston + Con'rod	HKS Intercooler
HKS Camshaft	HKS 860cc Injector





【Notes for Installation】

• The engine must be removed in order to install this product.
• This kit does NOT include the symmetry turbine set, fuel pump, injectors, F-CON, EVC, and engine parts
• The factory boost setting of the Wastegate is approximately 90-100kPa.
• Modification of the stock water pipe is required.
• Modification of T/C heat insulator is required.
• This product is for a race use. HKS is not responsible for any damage of the engine and/or transmission caused by use of this product.
• CAT must be removed in order to install this product; therefore, the vehicle with this product cannot drive in a public road.
• The warranty of the vehicle from a dealer may be void after installing this product.
• The symmetry turbo set is not included in this product.
