S-TYPE O/C KIT ZN6/ZC6_N

15004-AT010

Features

• Newly designed single tube type fitting.
• From engine bench tests and experience from D1 racing it is found that the oil pressure of the FA20 engine is extremely high compared to the conventional mass-produced engines. (Max oil pressure: over 12kgf/cm²) New single tube fitting withstanding the high oil pressure was newly designed and included in the kit.

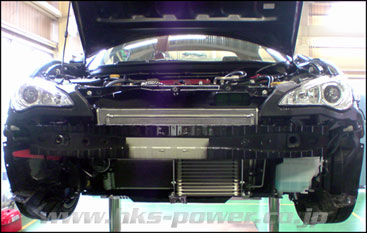

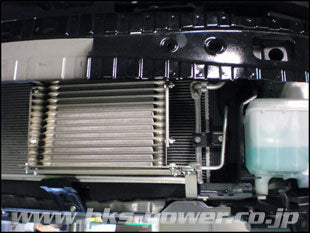

• Including the pre-assembled hose, bracket, and air guide and locating the core in front of the radiator enable an easy installation. Also, there is no major modification required to the chassis.
• Special spacer and center bolts were designed exclusively for this kit to install the oil cooler attachment without modification.
• The thin 15-layer core improves the cooling performance and makes installation easier.
• This kit is applicable only to the NA engine.(A kit for the supercharged engine is under development)

The following parts are included:

・Oil Cooler Core　・S-type Attachment　・Spacer ・Center Bolt ・Banjo　・Banjo Bolt ・Bracket　
・Air guide　・Accessory Parts

The characteristics of oil temp. and the water temp.
