HKS

PISTON FULL KIT SR20 2.2L S2 87.0

PISTON FULL KIT SR20 2.2L S2 87.0

$4,995.00 CAD
$4,995.00 CAD $4,995.00 CAD
Sale Sold out
Shipping calculated at checkout.

21004-AN001

NISSAN
180SX
1991 - 1998
SR20DET

■Feature

<POINT-1>

Displacement of SR20 is increased from stock 1,998cc to 2,139cc.
The larger displacement will increase torque. It enables to be used with large flow capacity turbines.
*STEP2 φ87.0 is 2,164cc.



<POINT-2>

φ86.5 Piston is considered as STEP1 of 2.2L Kit. The surface treatment of STEP2 (φ87.0) is not done for STEP1 to achieve the affordable price. This kit is also recommended for overhauling purpose. Feel the power of 2.2L.
*Although it is STEP1, it is forged piston. Forged connecting rod and forged crankshaft are the same items as STEP2 that means the maximum target horsepower is the same.
*φ87.0 piston is STEP2. It has nickel plating, which is more durable against knocking, on the piston top and ober coating, which reduces friction, is on skirt portion.


<POINT-3>

MADE IN JAPAN (HKS in house production).


φ86.5 piston was newly developed as STEP1. It is strong forged piston.
(STEP2 has nickel plating, ober coating and titanium coating top ring.)





■Selection of STEP1 (φ86.5) or STEP2 (φ87.0)

  HKS 2.2LKIT STEP1 HKS 2.2LKIT STEP2
KIT price (w/o tax)
Piston Bore (mm) 86.5 87.0
Displacement (cc) 2,139 2,164
Compression ratio (ε) Gasket1.2mm 8.7 8.8
Gasket1.6mm 8.4 8.5
Gasket2.0mm 8.2 8.3
crown height 4.8 4.8
crown volume 15.3 15.3
Top coating - nickel plating
skirt coating - ober coating
Remark /oil ring: 2 piece /top ring: titanium coating
/oil ring: 2 piece

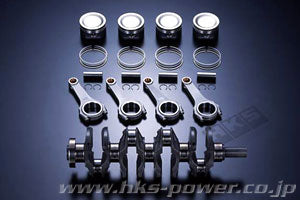

connecting rods same → Forged H-beam Connecting rods
crankshaft same → Forged full counter crankshaft
