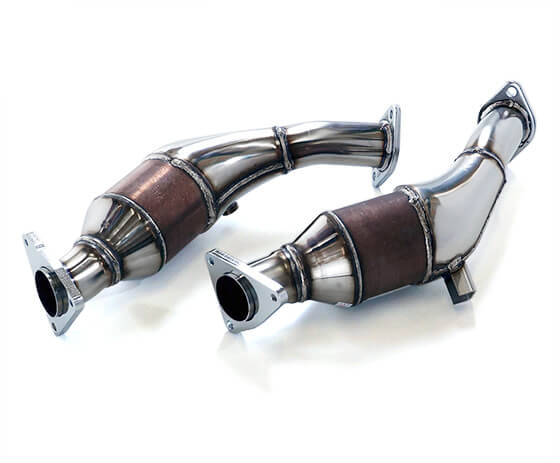

MTL CAT Z33 VQ35HR

33005-AN004

The Metal Catalyzer that has both high output and high purification system.
New for Fairlady Z/Z33/Z34





Features

• By installing this product to HKS Full Dual Muffler + normal intake, it will have 6ps up even for a normal engine.
• Even the accelerator response has not just better feeling but also our test with G sensor installation has shown the better results and gives sharp response at engine for accelerator work.
• Both pipe IN and OUT isφ60.
• Stock has 2 catalyzers each for both banks. But our product has one each with 150 cell that has less exhaust resistance. And we could pass the 2005 gas regulation.
• Includes the public organization's 10-15 mode exhaust gas test certificate.





Cautions

• When you install the Metal Catalyzer, the exhaust sound tends to get bigger. Please be careful for Z33 that could have 3 to 4dB higher depending on the type of muffler or the time-related deterioration.
• It is possible to hear exhaust interfering sound when accelerating.
• Not for Roadster.







Other parts

Part	Quantity	Size
Stud bolt	2	M10
Washer based nut	4	M10 P=1,25
Nut	4	M10 P=1.5
Nut	2	M10 P=1.25
Bolt	4	M10 L=40 P=1.5
Bolt	2	M10 L=25 P=1.25
Spring washer	6	M10
Plain washer	12	M10
Gasket	2
Ring Gasket	2
