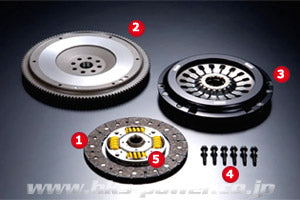

LA CLUTCH CN9A/CP9A/CT9A 4G63

 New "MG Composite Disc"

• MG Composite Disc" is composite of Metal fiber and Glass fiber. The newly developed disc has ideal performance of friction coefficient, anti-heat and strength.
• For street driving clutch engagement is easy and smooth. For circuit driving, it engages quickly without slippage.
• Diameter of disc is about 10mm smaller. The low inertia disc protects synchronizer and accepts quick gear change.

 Quick Response

The lightweight Flywheel weights 80% in order to balance smooth engagement operation, quick response and acceleration.

 Strap Drive Mechanism

Clutch cover has Strap Drive Mechanism that eliminates noise while clutch disconnection.
It ensures clutch disconnection.

 Kind Design

• Bolt On Design. No modification is required.
• All required parts are included in the kit.
• No parts to change movement type is required.

It is easy installation and OEM parts are not required.
(Replacement of Release Bearing is recommended. Lancer Evolution needs Nut Pin etc. as suspension need to be disassembled.)

 Preventing Noise Protecting Drive train

Disc Damper prevents uncomfortable gear noise from transmission. It absorbs shock torque and protects drive train.

• Acceptable Range is the range of engine torque that the clutch can be used for except intentional overheating of clutch.
• Acceptable range by condition is the range that the clutch might slide by rough operation, kick back from tire and distortion of parts etc.
• Over the limitation is the range that the clutch might slide during clutch engagement at high rpm.
• Mechanical limitation is the point that sliding starts when accelerated during driving.
