KW Suspension

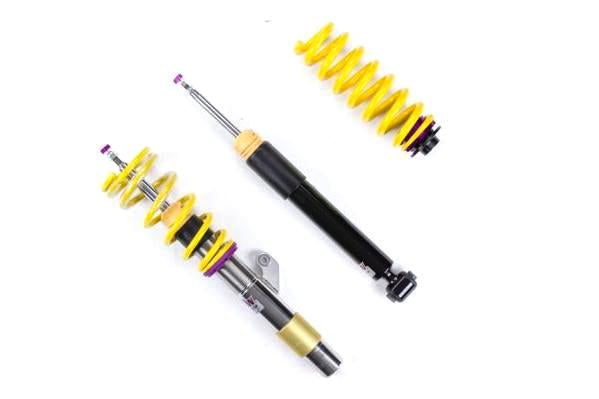

KW Coilover BMW 4 series F36 Gran Coupe 428i, 430i, AWD (x-Drive); without EDC - Variant 2

KW Coilover BMW 4 series F36 Gran Coupe 428i, 430i, AWD (x-Drive); without EDC - Variant 2

Regular price $3,568.00 CAD
Regular price Sale price $3,568.00 CAD
Sale Sold out
Shipping calculated at checkout.
Availability: PLEASE READ BEFORE ORDERING!!
📍 In-Store 3520 McNicoll Ave #12, Scarborough, ON
Out of Stock
📦 External Warehouse Contact for Information

Note: Multi-item orders ship together once consolidated at 3520 McNicoll Ave #12, Scarborough, ON.

Lead Time: Ships within 4- 5 Business Days, Contact for ETA

KW Variant 2: Sporty and personalized with adjustable rebound dampening.
This system is designed for the driver who requires not only determining the individual lowering of their vehicle, but having the ability to adjust the damper settings to fine tune the system to their needs.
The adjustable rebound damper allows adjustment of the pitch and roll of the vehicle adapting it to one’s own driving preferences.



Feature

  • Rebound adjustable damper technology with 16 precise clicks
  • Stainless steel technology "inox-line"
  • Individual, continuous lowering
  • Tested adjustment range
  • Ready to install complete solution
  • High quality components for a long life
  • Complete documentation for an easy installation



Lowering adjustment ranges

Front from 1.0" to 2.2"

Rear from 1.4" to 2.4"



Springrates in lbs/inch

Front P

Rear 630



Listing of all vehicles this part can be used with

Year Make Model/Submodel Engine Details
2014 BMW 328d xDrive Base 2.0l L4 N47D20 AWD, Wagon
2015 BMW 328d xDrive Base 2.0l L4 N47D20 AWD, Wagon
2016 BMW 328d xDrive Base 2.0l L4 N47D20 AWD, Wagon
2017 BMW 328d xDrive Base 2.0l L4 N47D20 AWD, Wagon
2018 BMW 328d xDrive Base 2.0l L4 N47D20 AWD, Wagon
2014 BMW 328i GT xDrive Base 2.0l L4 N20B20A AWD, Hatchback
2015 BMW 328i GT xDrive Base 2.0l L4 N20B20A AWD, Hatchback
2015 BMW 328i GT xDrive Base 2.0l L4 N26B20A AWD, Hatchback
2016 BMW 328i GT xDrive Base 2.0l L4 N20B20A AWD, Hatchback
2016 BMW 328i GT xDrive Base 2.0l L4 N26B20A AWD, Hatchback
2014 BMW 328i xDrive Base 2.0l L4 N20B20A AWD, Wagon
2014 BMW 328i xDrive Base 2.0l L4 N26B20A AWD, Wagon
2015 BMW 328i xDrive Base 2.0l L4 N20B20A AWD, Wagon
2015 BMW 328i xDrive Base 2.0l L4 N26B20A AWD, Wagon
2016 BMW 328i xDrive Base 2.0l L4 N20B20A AWD, Wagon
2016 BMW 328i xDrive Base 2.0l L4 N26B20A AWD, Wagon
2017 BMW 330i GT xDrive Base 2.0l L4 B46B20O0 AWD, Hatchback
2017 BMW 330i xDrive Base 2.0l L4 B46B20O0 AWD, Sedan
2015 BMW 428i xDrive Gran Coupe Base 2.0l L4 N20B20A AWD, Hatchback
2015 BMW 428i xDrive Gran Coupe Base 2.0l L4 N26B20A AWD, Hatchback
2016 BMW 428i xDrive Gran Coupe Base 2.0l L4 N20B20A AWD, Hatchback
2016 BMW 428i xDrive Gran Coupe Base 2.0l L4 N26B20A AWD, Hatchback
2017 BMW 430i xDrive Gran Coupe Base 2.0l L4 B46B20O0 AWD, Sedan
2018 BMW 430i xDrive Gran Coupe Base 2.0l L4 B46B20O0 AWD, Hatchback
2019 BMW 430i xDrive Gran Coupe Base 2.0l L4 B46B20O0 AWD, Hatchback



Installation

Instruction
