Honda K24Z Oil Filter Housing Block-Off Plate Kit

Honda K24Z Oil Filter Housing Block-Off Plate Kit

$106.00 CAD
$106.00 CAD
Sale Sold out
Shipping calculated at checkout.
Availability: PLEASE READ BEFORE ORDERING!!
📍 In-Store 3520 McNicoll Ave #12, Scarborough, ON
Out of Stock
📦 External Warehouse Contact for Information

Note: Multi-item orders ship together once consolidated at 3520 McNicoll Ave #12, Scarborough, ON.

Lead Time: Ships within 4- 5 Business Days, Contact for ETA

Installation Tips

Overview

When building the K24Z motors like the 9th Gen Civic Si and TSX to turn out big power and 8000+ rpms the factory oiling system becomes inefficient and problematic due to the balance shafts the OEM oil pump uses. The most common and cost-effective solution to this is swapping in the Acura RSX Type-S PRB oil pump to eliminate the balance shafts and better supply oil.

This kit is required to block-off the factory oil filter housing location at the bottom of the K24Z block when doing the a PRB/Type-S oil pump swap and relocates the filter location to the top of the block like the rest of the K-Series motors.

NOTE: THE FACTORY K24Z-STYLE OIL PUMP MUST BE SWAPPED TO A PRB-STYLE OIL PUMP WHEN USING THIS BLOCK-OFF PLATE. NOT DOING SO WILL RESULT IN THE LOSS OF ALL OIL PRESSURE

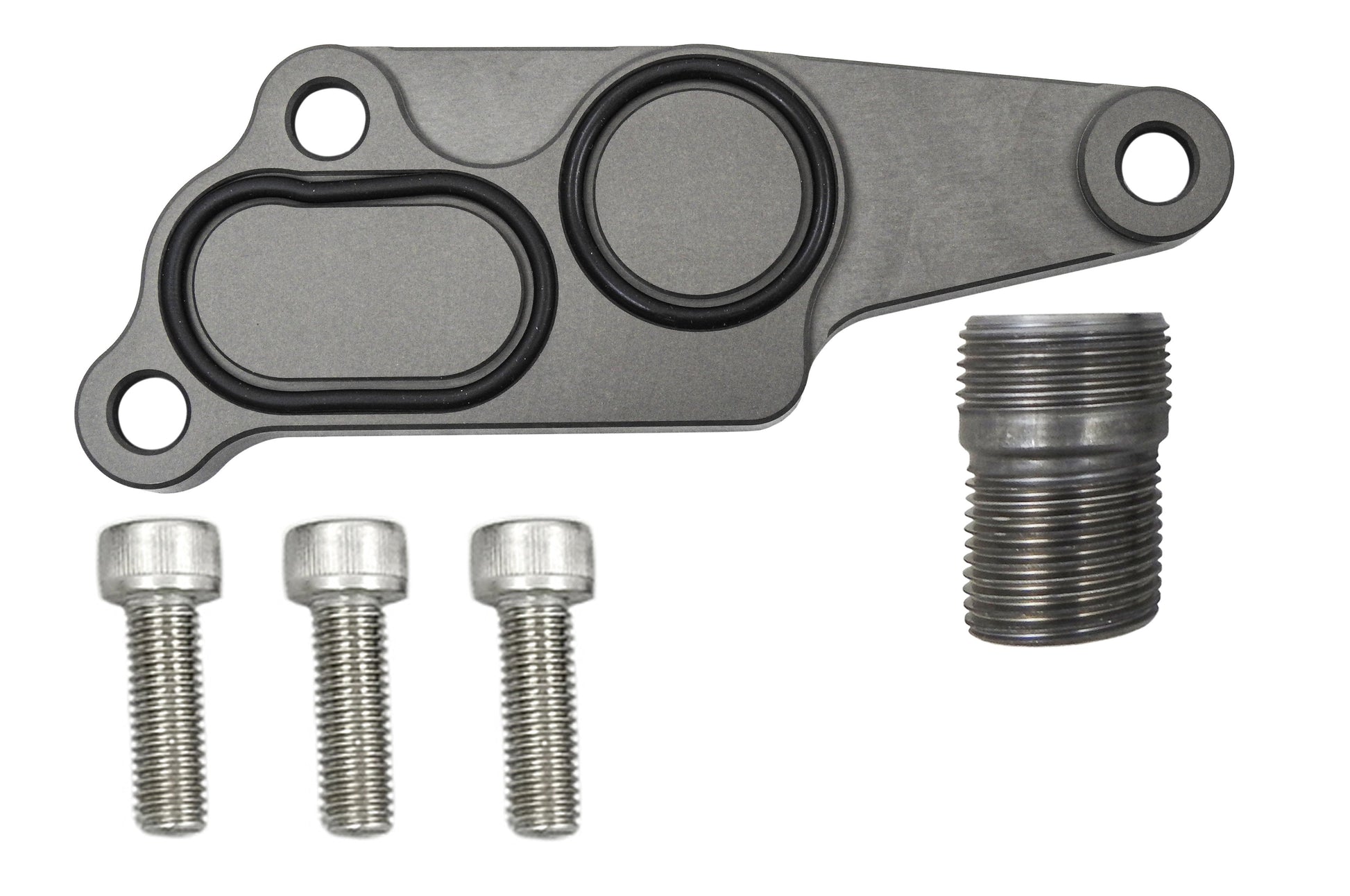

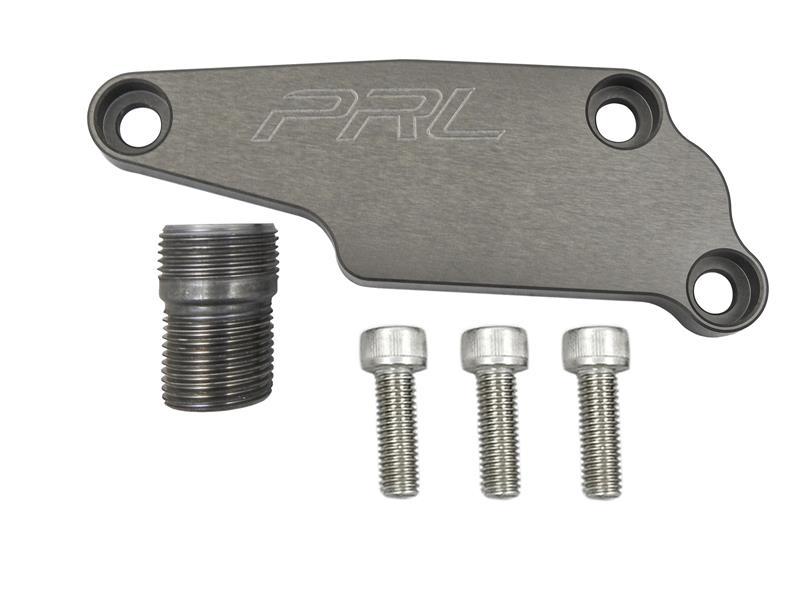

Kit Includes:

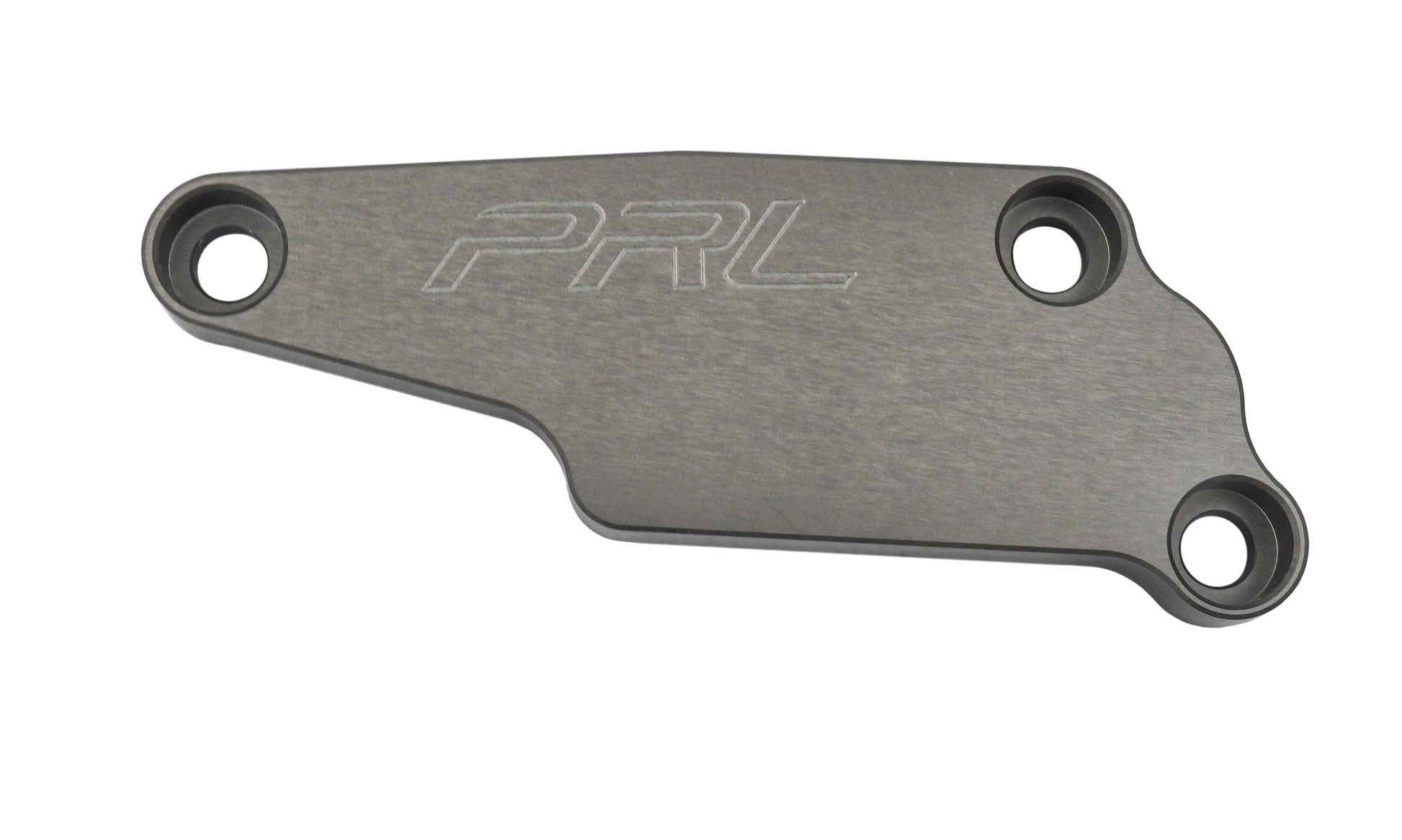

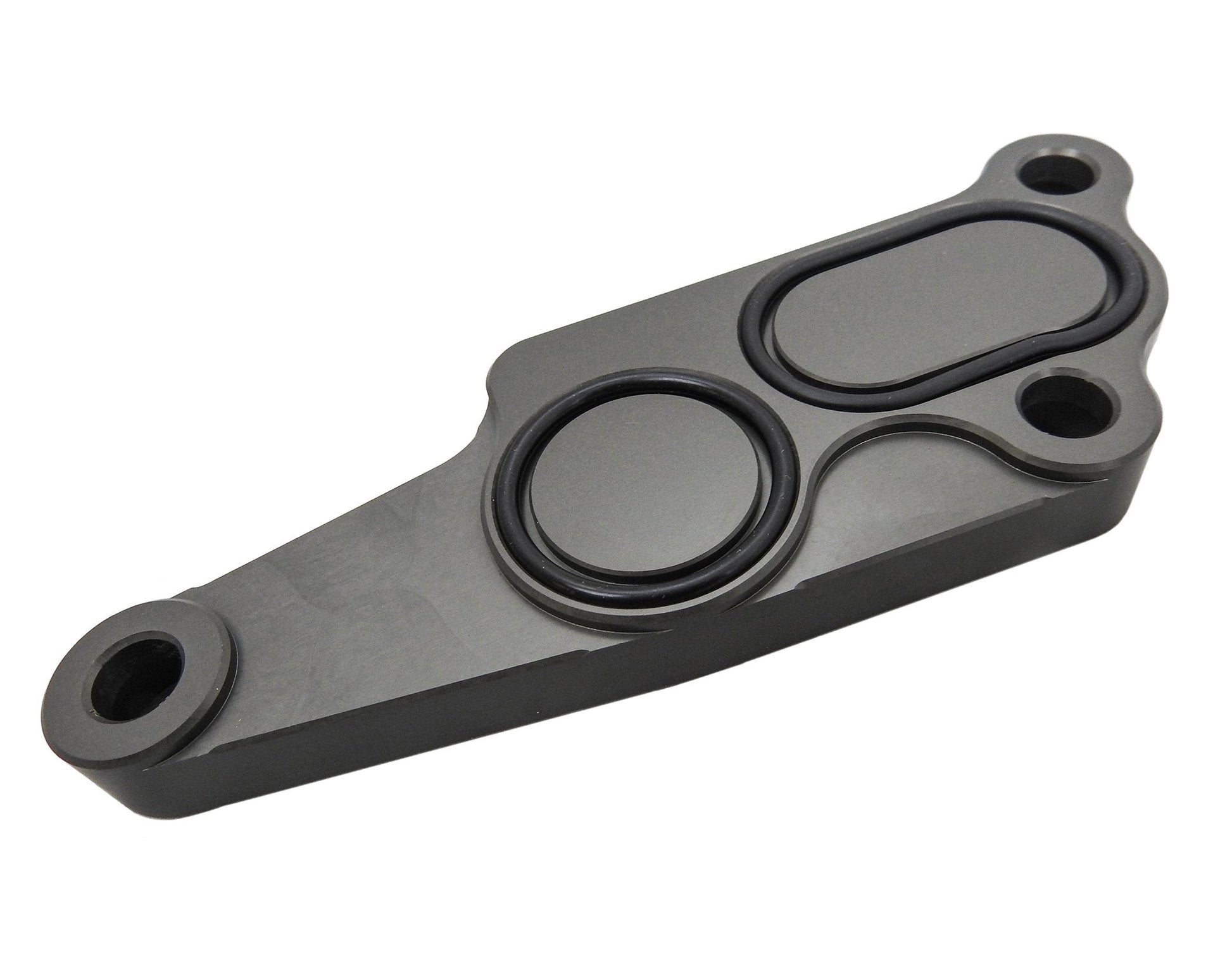

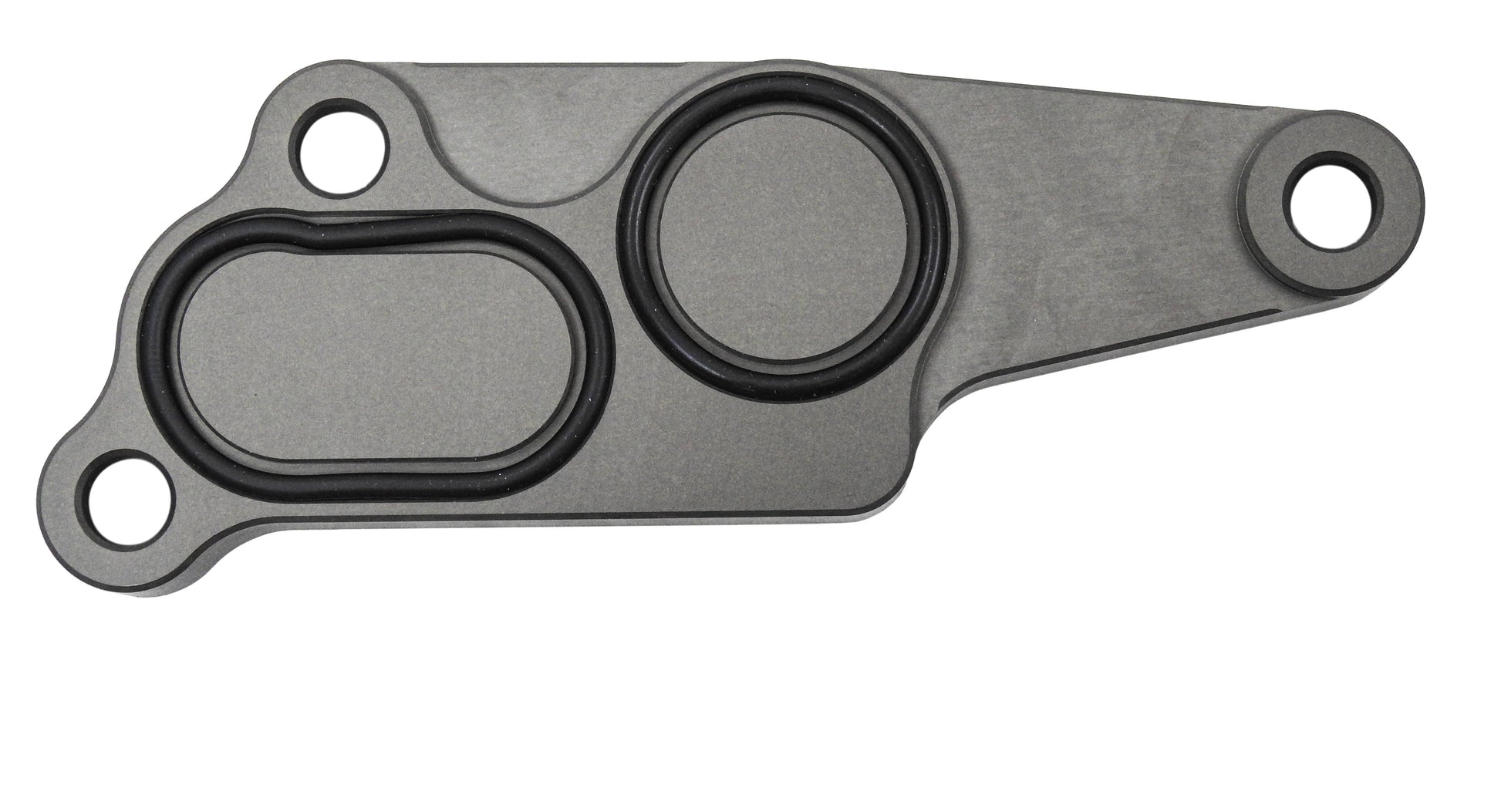

  • Oil Pump Block-Off Plate
  • (2) OEM Honda O-Rings
  • (3) Stainless Steel Socket Head Cap Screw Bolts
  • OEM Honda Oil Filter Holder
