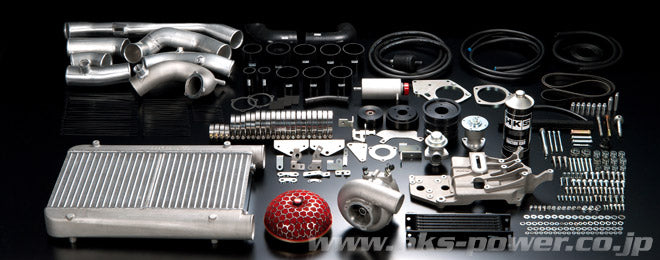

HKS GT S/C SYSTEM Pro Z33 VQ35DE Ver2

Over 500HP with Z33!!

This kit can achieve over 500hp if the engine is strengthened, and better torque and power than GTS7040 kit with a stock engine.

【Features】

• The intercooler size is doubled compared to the existing kit. The capacity is doubled as well to withstand 500hp.
• The diameter of the suction pipe and intercooler pipe is enlarged by 35%.
• The airflow capacity of the supercharger is increased by 30% compared to the existing kit (GT7040).
• With adequate airflow, the torque & power increase are noticeable from the low to high speed range!!

【Performance】

【Note in order to install this kit】

• S/C Pulley: Prepare φ100 or φ110 supercharger pulley depending on the target output.
• Belt: Prepare a belt matches with the supercharger pulley.

  S/C Pulley Dia.	Code No.	Belt	Code No.
  φ100	12999-AK005	7PK1070	24996-AK038
  φ110	12999-AK006	7PK1092	24996-AK039

• Prepare a engine management system such as HKS F-CON.
• Select the spark plug which heat range is appropriate to the vehicle specifications.
• Fuel Parts: HKS Fuel Upgrade Kit which is designed to withstand 400hp or more.
