GT2-7040 SETUP KIT CR-Z(ZF1)

12001-AH009

HKS has already released the intake and exhaust tuning parts for CR-Z. To introduce higher performance tuning to more CR-Z owners, HKS will release GT Supercharger Set-up Kit with the GTS7040 Supercharger. Installation of this set-up kit enables users to target the 300PS engine output and the 250km/h maximum speed (upgrading the engine internals and clutch may be required.)

• Selectable pulley diameter from 80mm to 100mm. Flexible pipes layout.
• The engine output can be increased over 300ps with upgrading the engine internals and pulley, adjusting the restrictor, etc

Performance comparison

* The graph is for your reference. Various combinations are available by selecting different pulley's diameter and restrictor.



	Power	Torque
GTS7040 80φ	300.5ps/6,100rpm	35.9kg-m/5,800rpm
GTS7040 85φ	285.5ps/6,300rpm	32.8kg-m/6,100rpm
GTS7040 90φ	253.1ps/6,300rpm	29.5kg-m/5,900rpm
GTS4015 Complete Kit Step2	202.4ps/5,700rpm	26.7kg-m/5,000rpm
GTS4015 Complete Kit Step1	175.1ps/5,500rpm	24.6kg-m/4,700rpm
Normal	143.4ps/6,100rpm	19.8kg-m/2,700rpm

* These are in-house test results. Values may vary depending on measuring instruments.

Notes for Installation

• Suction pipe & chamber pipe must be made separately.
• Installation of the intercooler is recommended.
• Re-tuning the fuel and ignition timing is required. (To use F-CON iS, OSC is required.)
• Replace the injectors with larger capacity injectors if the target engine output is more than 170ps.
• Replace the fuel pump to use the injectors that capacity is more than 350cc. (CZ4A Factory fuel pump-150～200l/h)
• Upgrading the engine internals if the target engine output is more than 200ps, and the torque is more than 25kg/m.
• Modify the pulley's rib to 6 ribs if the target engine output is more than 200ps.
• High octane gasoline must be used.
• Replace the spark plugs with the higher heat range spark plugs. (HKS SUPER FIRE RACING M40i or higher type)



Component

	Setup Kit
Supercharger Assy	△* 1
Supercharger Oil System	○

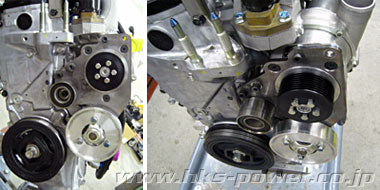

Supercharger Installation Bracket	○
Suction Pipe +Blow off	△* 2
Intercooler ASSY	Not Included
Intercooler Pipe	Not Included
Brackets	Not Included
Fuel Control Parts (F-CON iS+OSC)	Not Included
Injectors	Not Included
Spark plugs	Not Included

*1 Pulley is required separately.
*2 Inlet Flange (I.D.60mm) is included.
