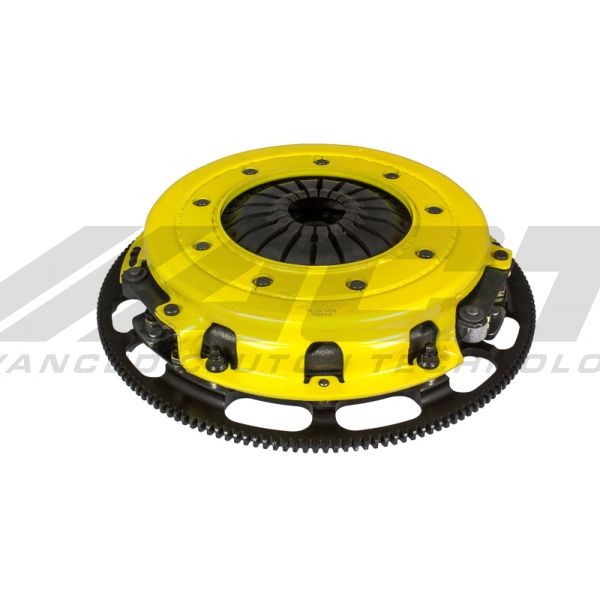

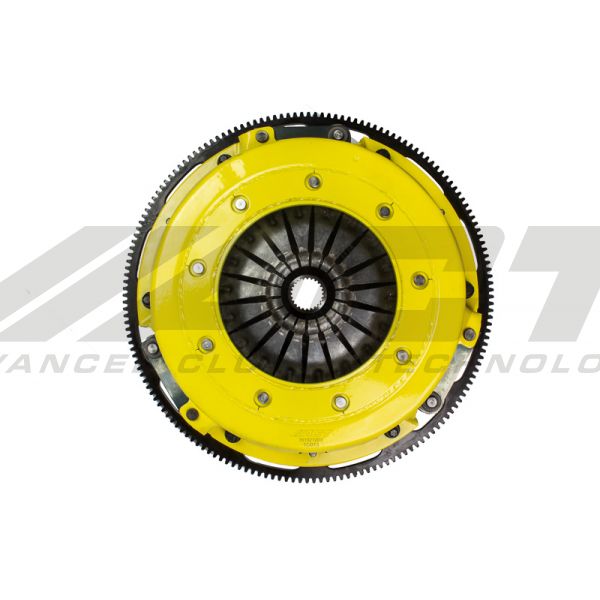

ACT 16-17 Chevrolet Camaro SS Twin Disc HD Race Clutch Kit
ACT 16-17 Chevrolet Camaro SS Twin Disc HD Race Clutch Kit
Couldn't load pickup availability
Note: Multi-item orders ship together once consolidated at 3520 McNicoll Ave #12, Scarborough, ON.
Lead Time: Ships within 4- 5 Business Days,
T1R-G09
| Item Description | Twin Disc HD Race Kit |
|---|---|
| Product Weight (lbs.) | 43.2 |
| Torque Capacity (ft/lbs.) | 1141 |
| Torque Capacity Over OE | 190% |
| Disc Material | Ceramic |
| Clutch Disc Diameter (Inches) | 10.5 |
| Clutch Disc Diameter (Millimeters) | 267 |
| Input Shaft Diameter (inches) | 1.125 |
| Warranty | 12 Months (view details) |
| SFI | 1.2 |
Description
T1R-G09 twin disc kit offers twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. ACT twin disc kits endure an exclusive four-stage, heat treating process performed on all diaphragms. The ACT twin disc features the ability to adjust for disc wear and provides equal disengagement for discs. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and trouble-free service. All ACT twin disc kits include a CNC-machined and dynamically balanced flywheel to ensure trouble-free installation and operation. ACT twin disc kits include a pressure plate, two discs, a floater, flywheel and alignment tool. Some kits may include a pilot bearing and release bearing.
| Feel | Light pedal effort, quicker shifts, aggressive engagement, mild to moderate gear rattle |
|---|---|
| Life | Doubles the number of disc surfaces for better wear, heat capacity and longer life, extended by ACT's exclusive diaphragm design |
| Quality | Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance |
| Recommended Use | Recommended for race use only |
| ACT Difference | 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability |
