Applications:
Universal Bolt pattern matches all 86-93 Ford Mustang 5.0L specs.
Features:
O-Rings Sealed
Notes:
Our K-Tuned throttle cables should be used with K-Tuned TB's. In most cases the stock cables will NOT be the correct length
No MAP Sensor or IACV Sensors ports, these are now deleted

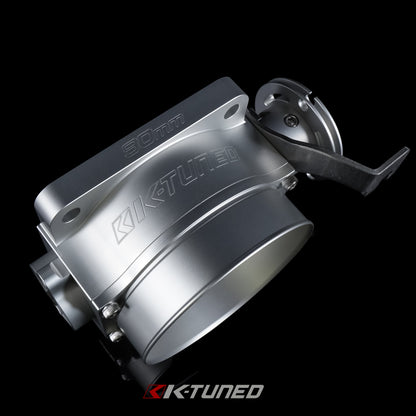

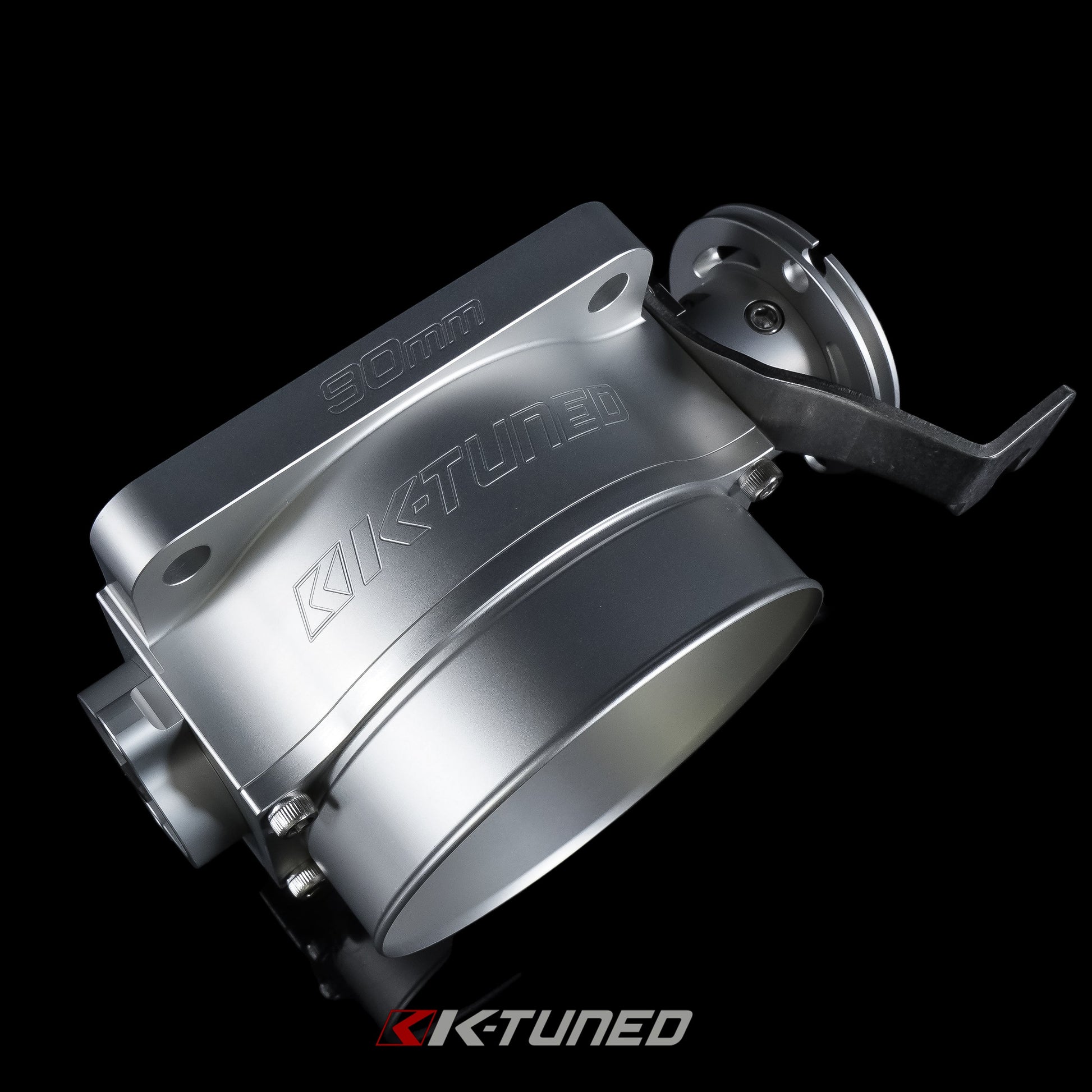

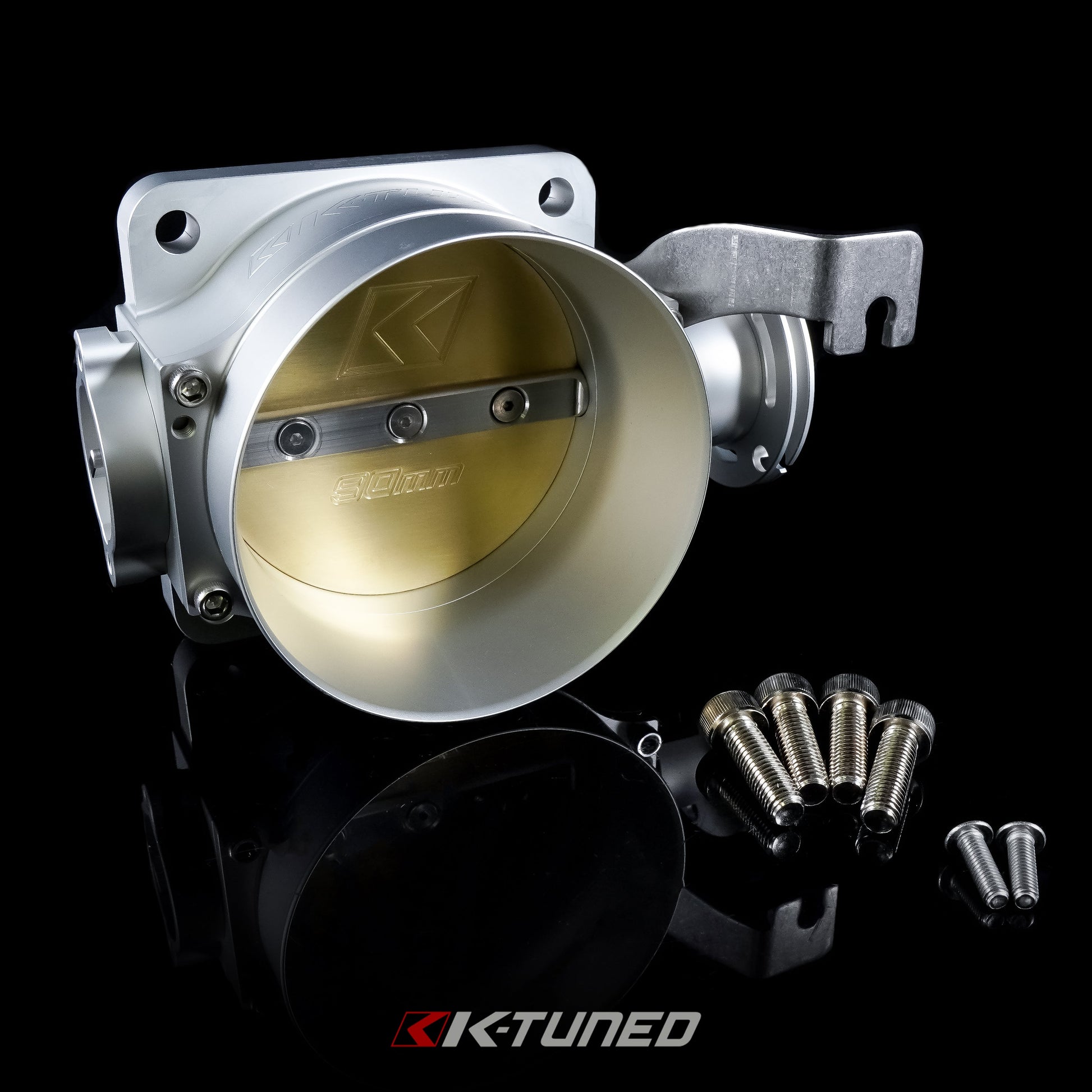

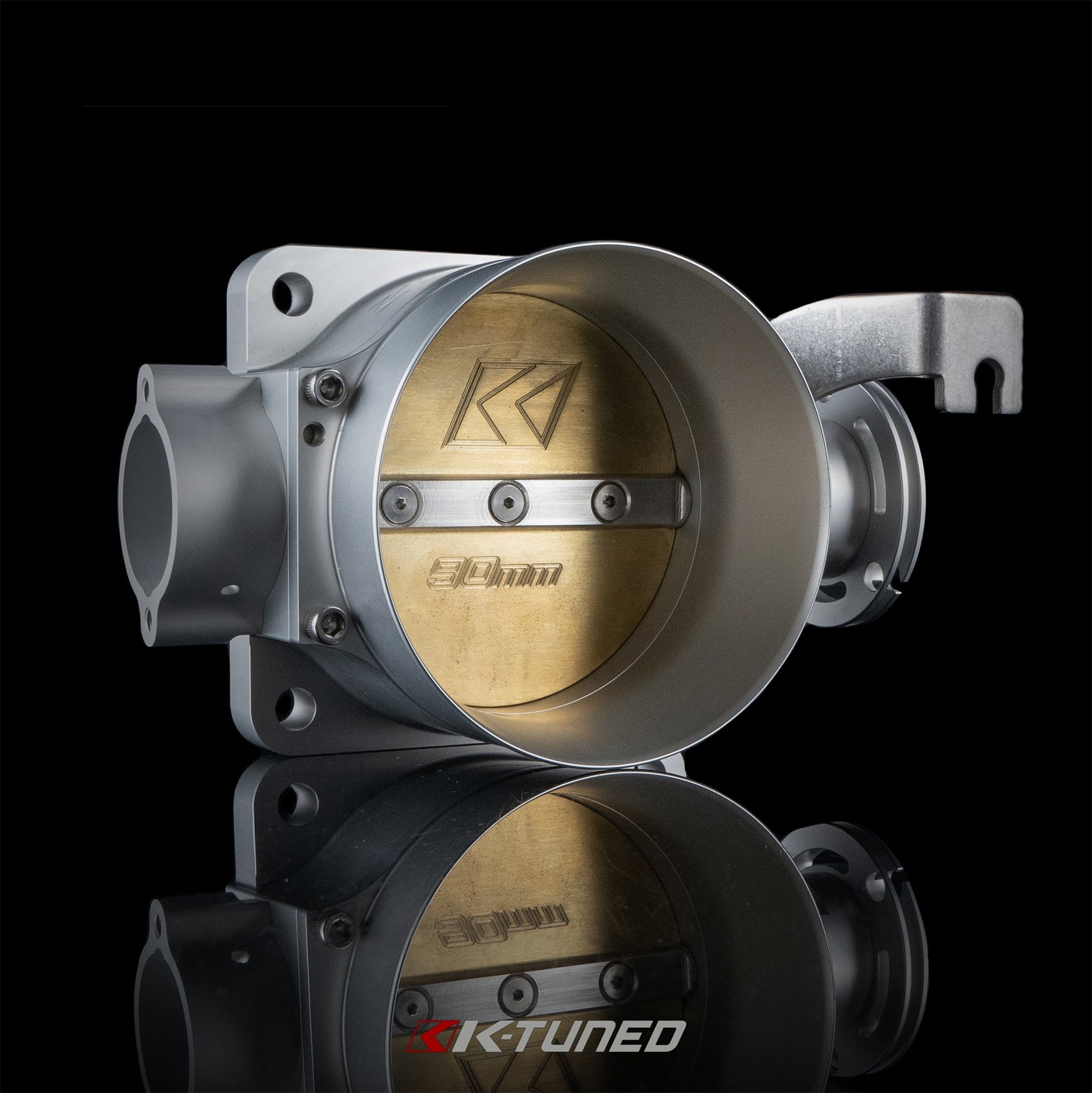

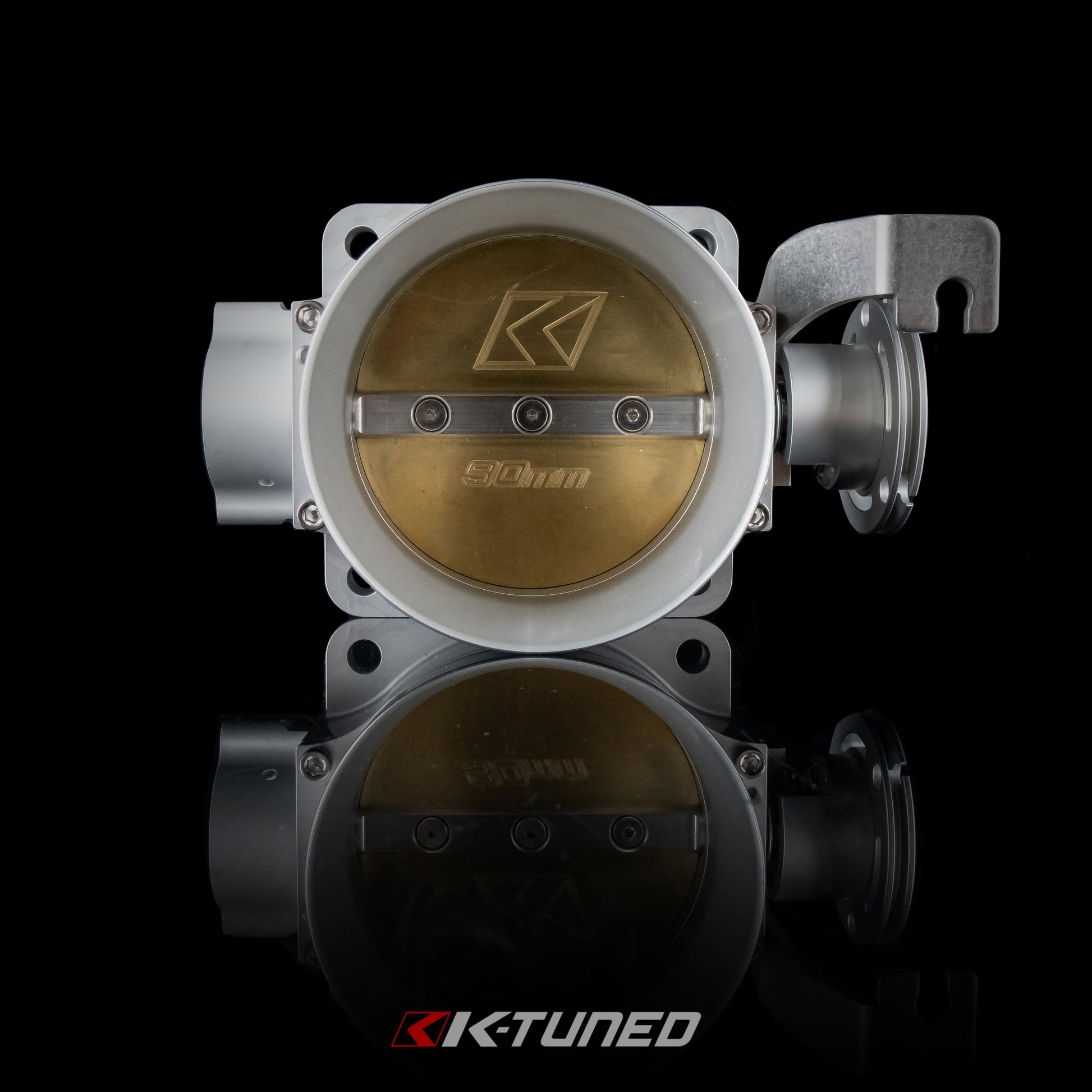

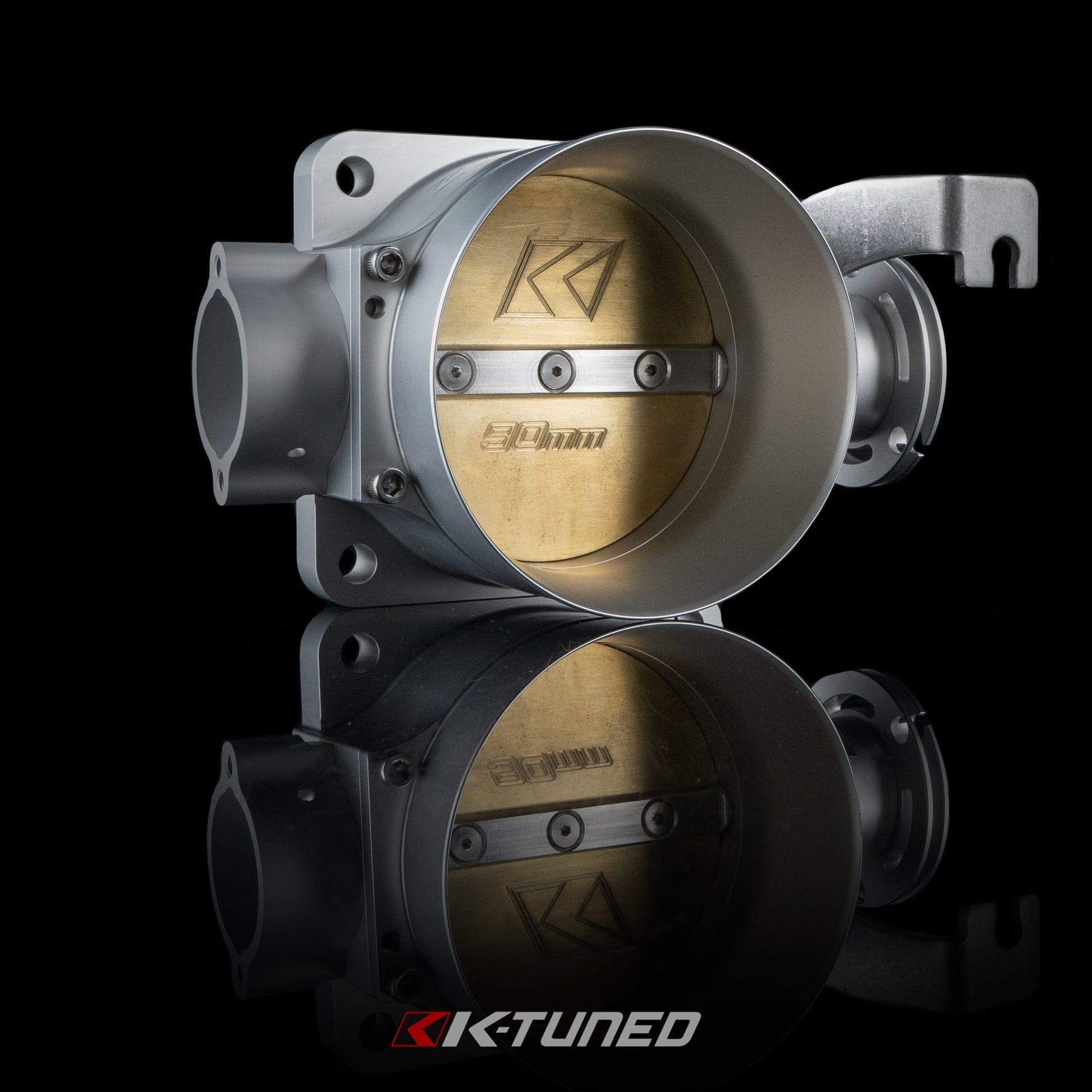

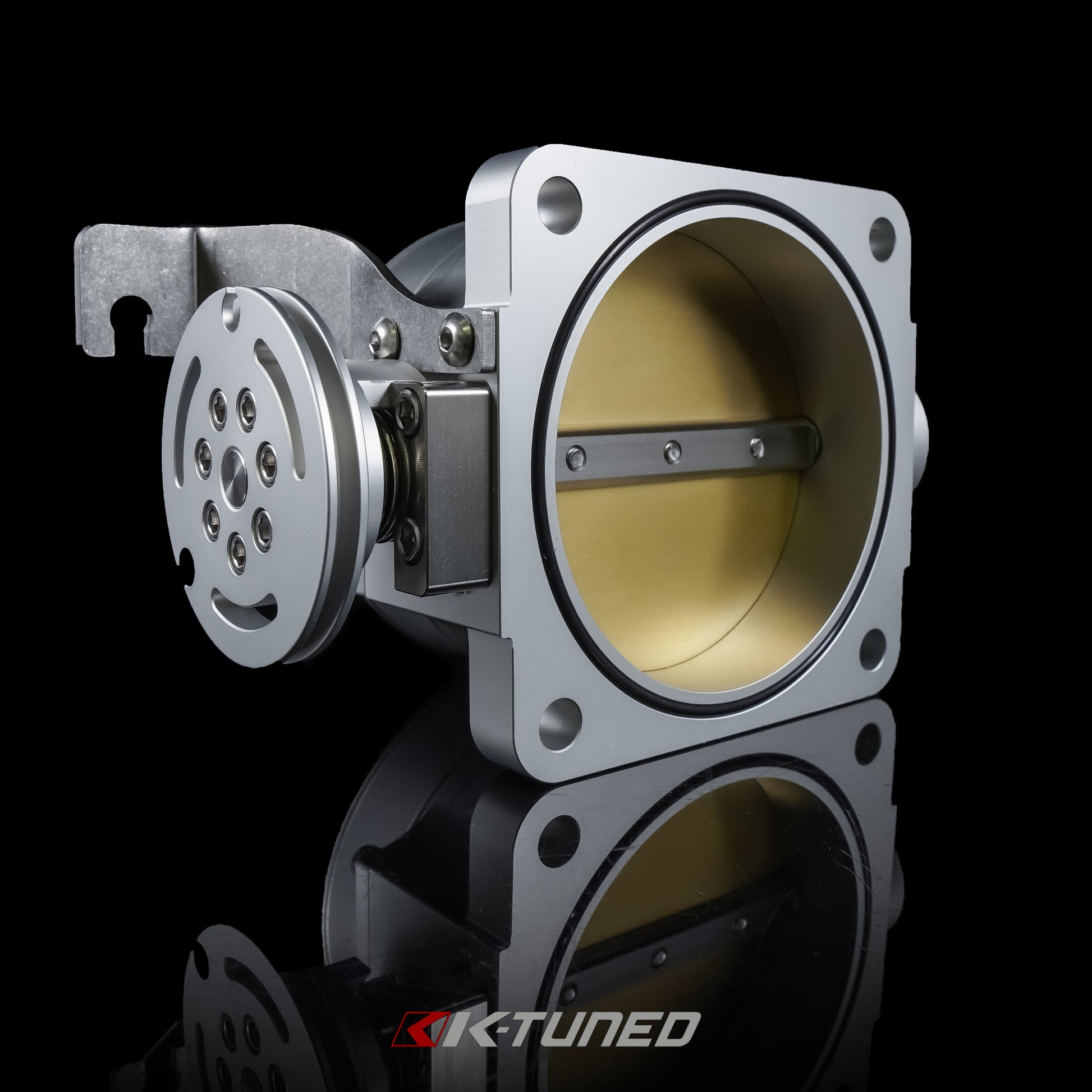

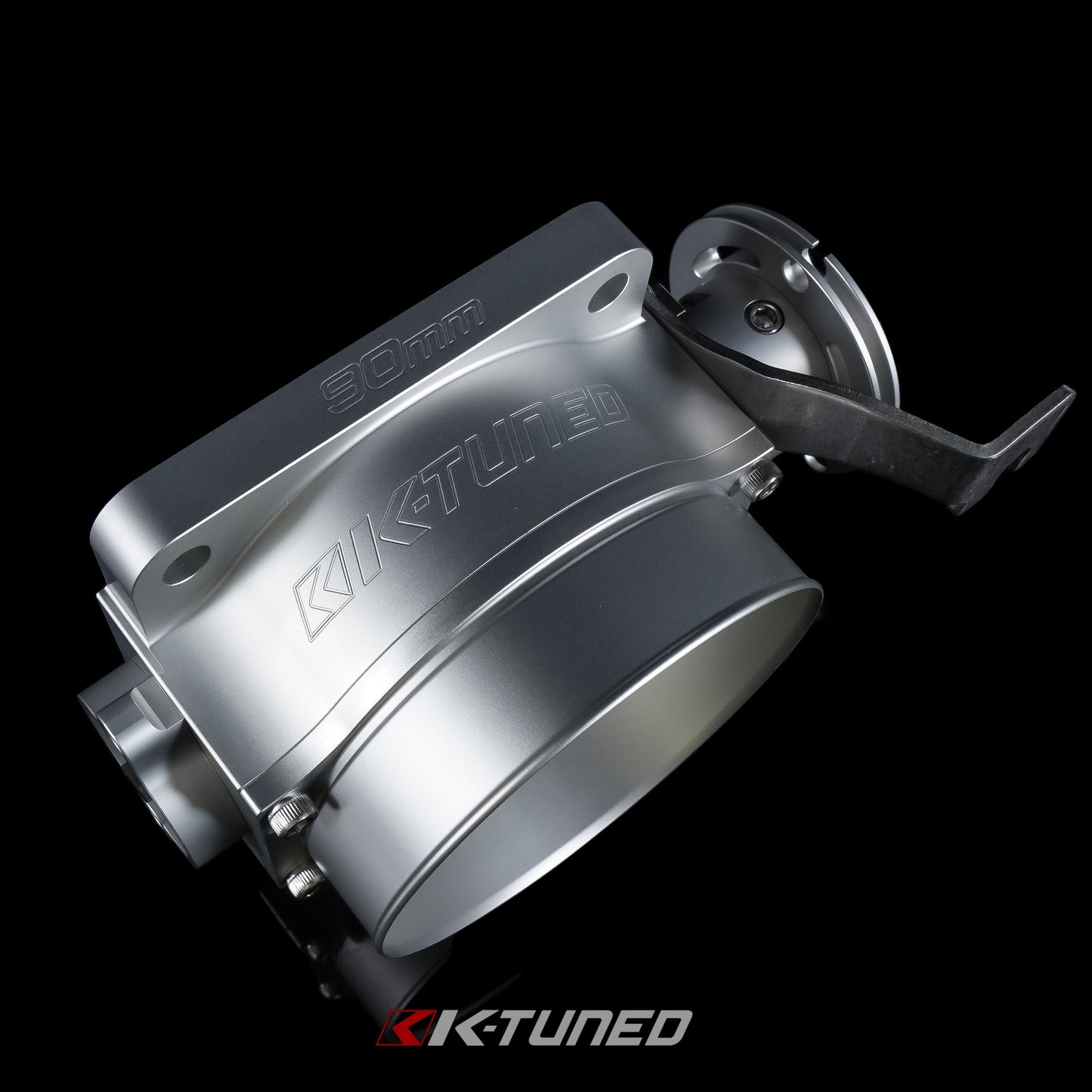

Our K-Tuned 90mm Throttle Body Uses that popular bolt pattern from the 86-93 Ford Mustang 5.0L. This allows our throttle body to bolt up perfectly to some of the bigger aftermarket race style intake manifold options. The throttle body comes standard with a 4" barb inlet as well as choice of K series or B series TPS sensor flanges. As with our previous designs, the throttle spring tension can be adjusted to suit the driver. We also have Vanjen (Wiggins Style) inlets available separately in 2 additional sizes.

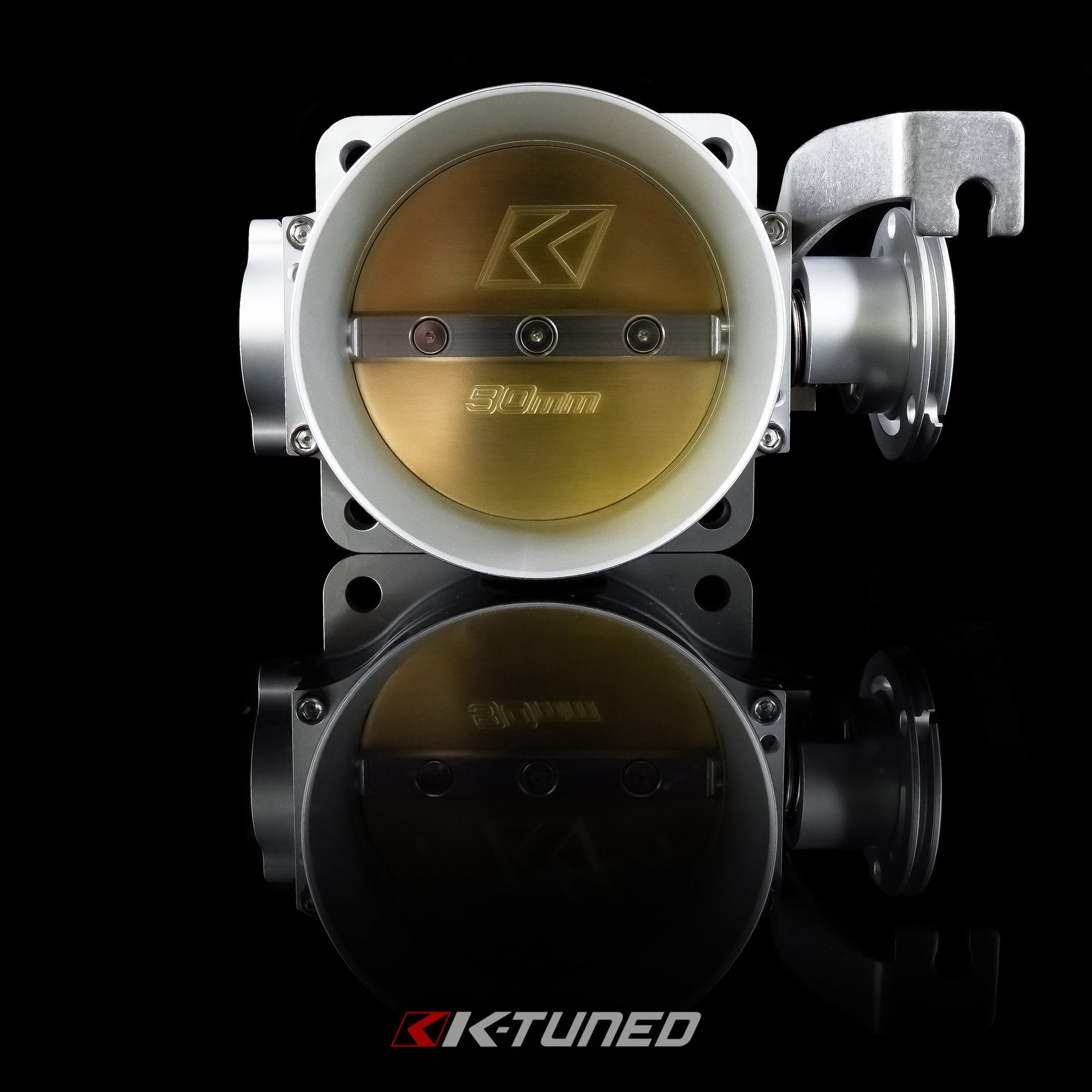

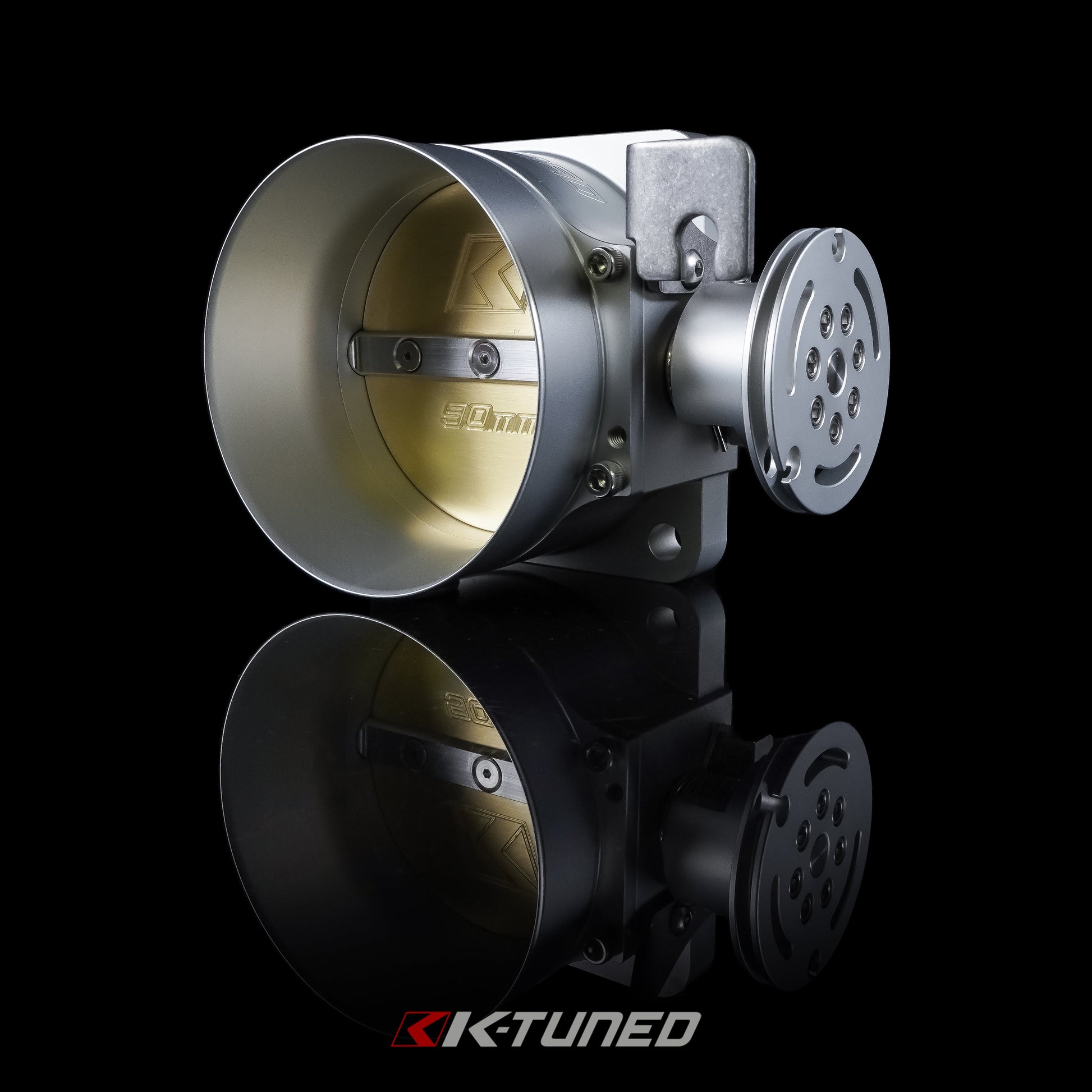

The base of the throttle body and the inlet are o-ring sealed so there is no need for additional gaskets. The throttle cable connection is easy, using the adjustable row rotor with a lower profile, stainless throttle cable bracket. All K-Tuned Throttle Bodies are constructed with 6061-T6 billet aluminum with a brass throttle blade and a stainless steel throttle shaft. Shaft seals are leak tested to 90psi.
